150mm (6-inch) Medical Swivel Caster with Total Brake | SSD-150B Series

Description

6 inch (150mm ) Medical Swivel Caster with Total Brake for Medical Hospital Beds equiments

Engineered for Excellence in Medical Mobility

The SSD-150B series is designed to meet the rigorous demands of healthcare environments. Whether for hospital beds, smart wheelchairs, or mobile workstations, these casters offer the ultimate combination of strength, safety, and silence.
Advanced Material Science
High-Impact Frame: The main frame and wheel core are crafted from high load-bearing Nylon (PA6), offering exceptional resistance to oils, chemicals, and industrial solvents.
Premium TPU Tread: The wear-resistant TPU tread provides superior shock absorption, vibration damping, and noise reduction while remaining non-marking on expensive hospital floors.

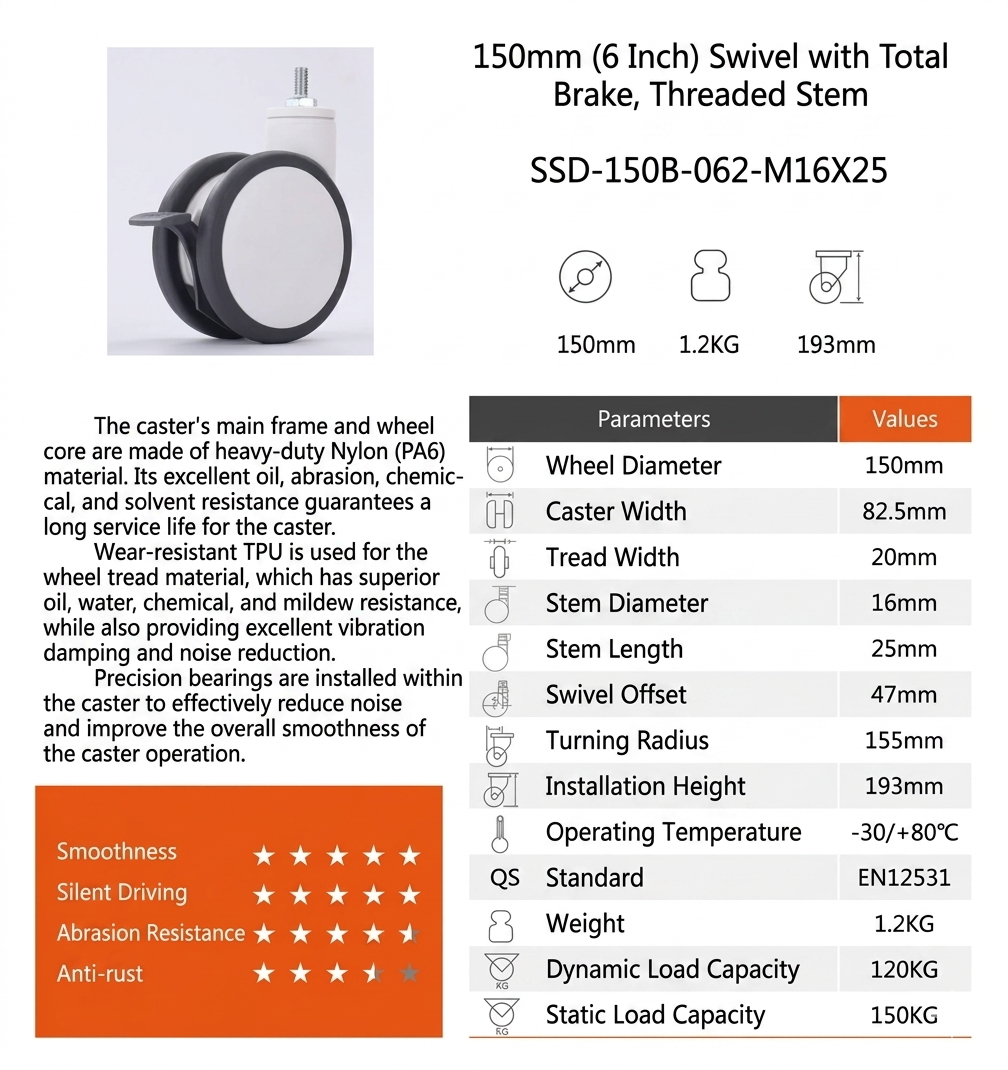

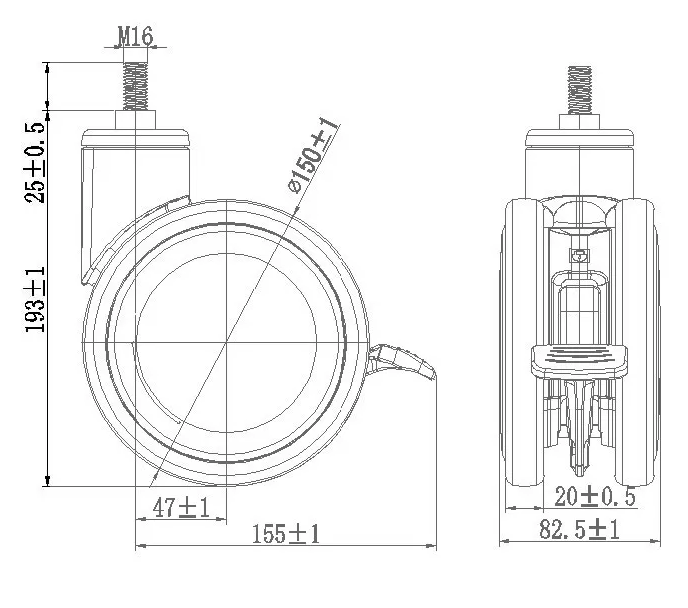

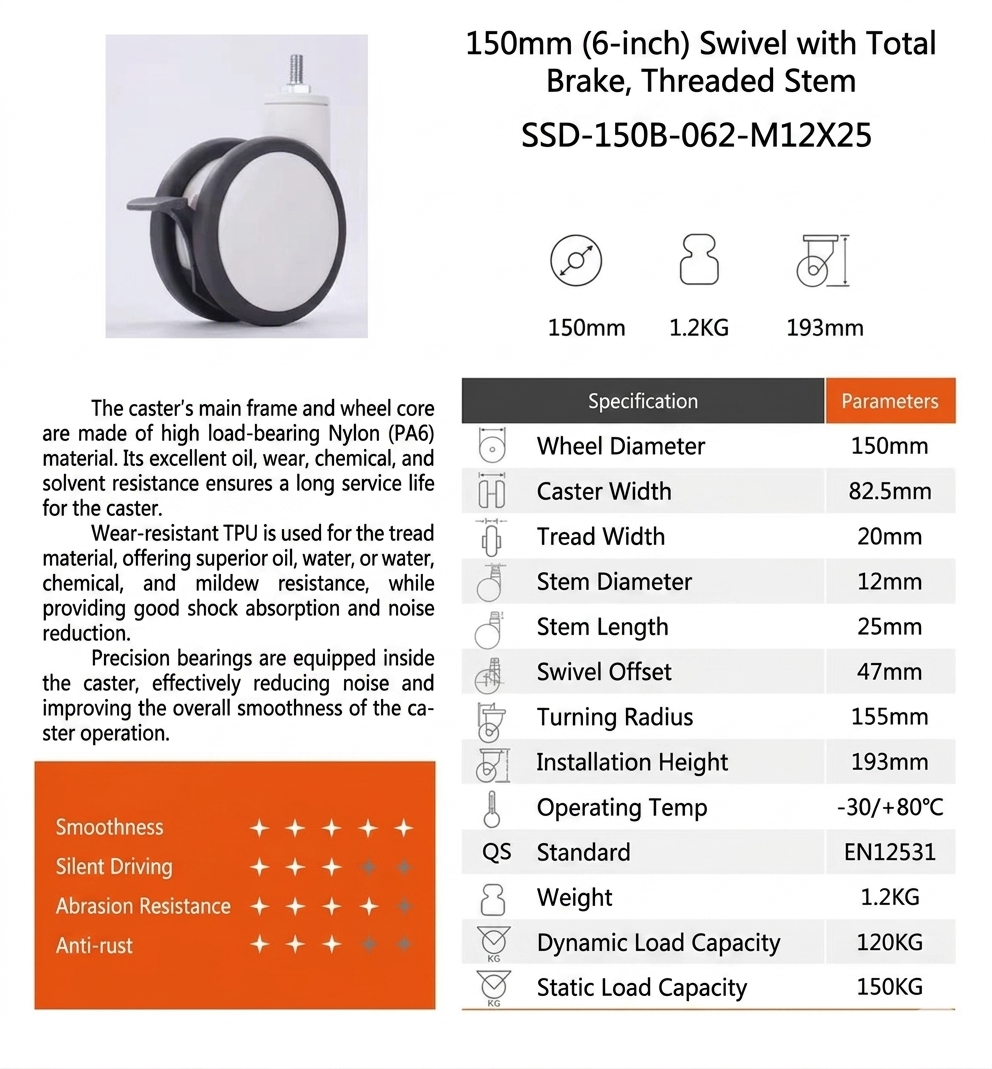

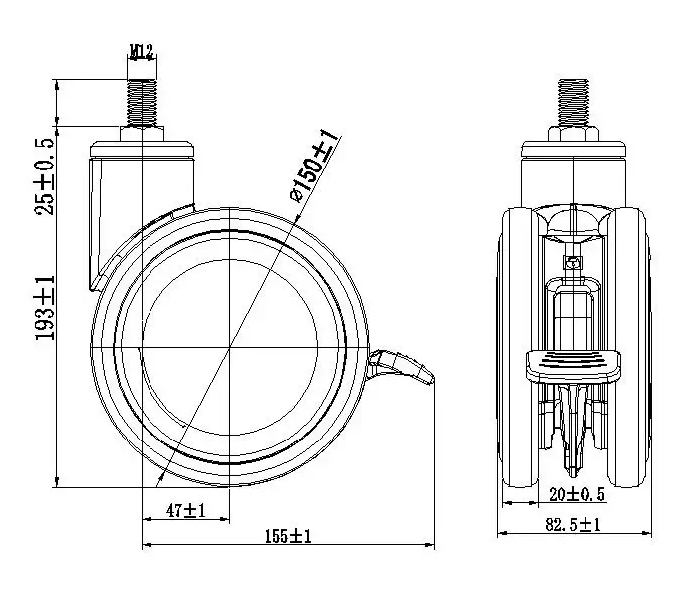

Technical Specifications

Feature                                                        SSD-150B-062-M12X25                                                SSD-150B-062-M16X25
Stem Diameter                                                        M12 (12mm)                                                                              M16 (16mm)
Stem Length                                                              25mm                                                                                            25mm
Wheel Diameter                                                    150mm                                                                                             150mm
Total Height                                                            193mm                                                                                            193mm
Dynamic Load                                                        120KG                                                                                              120KG
Static Load                                                              150KG                                                                                              150KG
Operating Temp                                                     -30°C to +80°C                                                                            -30°C to +80°C

Why Choose the SSD-150B Series?

Total Brake Control: A single-pedal system that locks both the wheel rotation and the swivel direction simultaneously for maximum stability.
Ultra-Smooth Gliding: Integrated precision bearings ensure minimal rolling resistance, allowing heavy equipment to be moved with a single finger.
Hygienic & Durable: Anti-rust and anti-corrosion properties make it suitable for environments requiring frequent chemical disinfection.
EN12531 Certified: Manufactured according to international safety standards for hospital furniture and equipment.

Frequently Asked Questions (FAQ)

1. What is the main difference between the SSD-150B-062-M12 and M16 models?
The only difference between these two models is the threaded stem diameter. The M12 model features a 12mm diameter stem, while the M16 model features a 16mm diameter stem. Both models share the same 150mm wheel diameter, 193mm installation height, and load-bearing capacities.

2. Can these casters be used in cold storage or high-temperature environments?
Yes. These casters are designed to operate within a wide temperature range of -30 °C to +80°C. This makes them suitable for medical sterilization rooms, cold storage facilities, and standard industrial environments.

3. How does the “Total Brake” system work?
The Total Brake system is a dual-action locking mechanism. When engaged, it simultaneously locks both the wheel rotation and the swivel direction, ensuring the equipment remains completely stationary and safe.

4. Are these wheels safe for sensitive hospital flooring?
Absolutely. The wheel tread is made of high-grade TPU (Thermoplastic Polyurethane). This material is non-marking, offers excellent shock absorption, and provides ultra-silent driving, which is essential for hospital wards and quiet zones.

5. What is the maximum load capacity for a set of four casters?
Each individual caster has a dynamic load capacity of 120KG and a static load capacity of 150KG. For a standard four-wheel configuration, it is recommended to calculate the total safe working load based on three wheels (to account for uneven floors), giving you a safe dynamic capacity of approximately 360KG per equipment unit.

6. Are the casters resistant to chemical cleaners?
Yes. The frame and wheel core are constructed from high load-bearing Nylon (PA6), which provides excellent resistance to oil, chemicals, and solvents. The TPU tread also offers superior water and mildew resistance.
