Premium 5″ Central Locking Medical Twin Wheel Caster – Silent & Heavy Duty

Description

🏥 Medical Grade Performance
Designed specifically for hospital beds and medical equipment. Features a high-strength PA6 Nylon frame and a precision-engineered central locking system for instant stability and safety.
🔇 Whisper-Quiet & Floor Friendly
Say goodbye to noisy, jerky movements. Our TPU (Thermoplastic Polyurethane) tread provides superior shock absorption and noise reduction, ensuring a quiet environment while protecting sensitive flooring from scratches.
⚙️ Smooth 360° Maneuverability
Equipped with built-in precision bearings, these casters offer effortless movement even under a full load of 100kg (Dynamic). The swivel radius of 101mm allows for tight-space navigation.
❄️ Extreme Temperature Durability
Built to last in demanding environments, performing reliably from -30°C to +80°C. Fully compliant with EN12531 standards.

 Ideal Applications

Hospital beds
Medical carts & trolleys
Stretchers
ICU equipment
Rehabilitation devices

Key Features

 Central Locking System
Compatible with rod-controlled braking systems, allowing synchronized locking for all wheels.
 Ultra Quiet Rolling
TPU tread reduces noise, perfect for noise-sensitive environments like hospitals.
 Heavy Duty Construction
PA6 reinforced core
Precision bearings
Strong load capacity up to 150KG static
 Smooth & Stable Movement
Twin wheel design improves:
Stability
Maneuverability
Load distribution

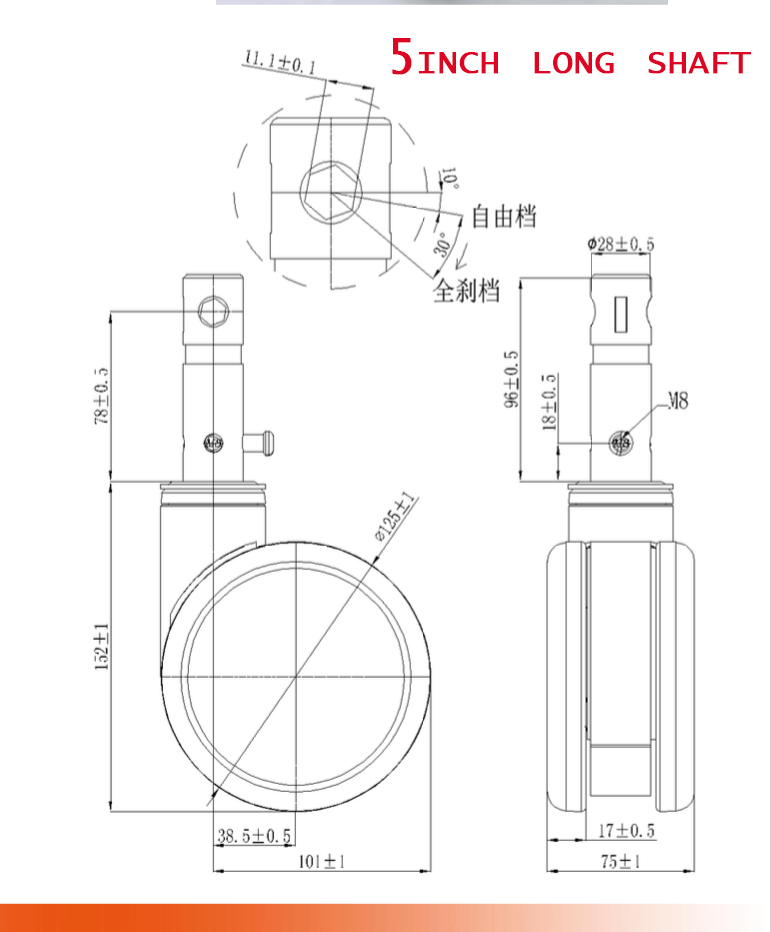

Technical Specifications

Core Specifications
Wheel Diameter: 125mm (5inches)
Caster Width: 75mm
Tread Width: 17mm
Stem Diameter: 28mm(Diameter) x 96mm(Length)
Stem Length: 96mm
Offset: 38.5mm
Swivel Radius: 101mm
Overall Height: 153mm

Material: PA6 NYLON (Body)+TPU (Tread)
Performance & Load
Temperature Range: -30/+80°C
Standard: EN12531
Weight: 1.1KG
Dynamic Load Capacity: 100KG per wheel
Static Load Capacity: 125KG per wheel
Product Description

Main Materials: Nylon (PA6) frame and wheel core; TPU wear-resistant tread.

Features: Noise reduction and shock absorption; safe and reliable. Equipped with precision bearings.

Function: Swivel caster with central locking and total locking options.
Rating Scale
Smoothness: ★★★★★★
Silent Driving: ★★★★★★
Abrasion Resistance: ★★★★★★
Anti-rust: ★★★★★☆

Why This Caster Stands Out
Designed for real-world medical use, this caster delivers:
Smooth and quiet movement
Strong load capacity
Reliable central locking control
It’s a practical choice for hospitals, equipment manufacturers, and distributors looking for consistent performance.

Caster with directional lock,total lock and free Functions. Twin wheels with precision ball

bearing and covers. Aluminum housing have better load capacity. High load-bearing capacity

TPU wheel tread assures of quiet and stable rolling.

Package Includes
1 × 125mm Twin Wheel Caster
(Optional: Bulk orders available)

Upgrade your medical equipment with reliable, silent casters today.

FAQ

Q: Does this caster fit standard medical beds?
A: Yes, it features a standard 28mm stem diameter and 96mm length, which fits most central locking systems in hospitals.
Q: Is the wheel safe for vinyl flooring?
A: Absolutely. The TPU (Thermoplastic Polyurethane) tread is non-marking and designed to be silent on medical-grade flooring.
