125mm Heavy Duty Medical Twin Wheel Caster | PA6 & TPU Silent Swivel | 100kg Load

Description

S-125 Series Medical Grade Swivel Caster – Available in Plate, Threaded Stem, and Plug-in Mounts
Key Features
High-Performance Materials: The main housing is constructed from Polyamide 6 (PA6), known for its exceptional resistance to oil, abrasion, and chemicals, ensuring a long operational life in demanding environments.
Silent & Floor-Protective: Features a Polypropylene (PP) wheel core with a TPU (Thermoplastic Polyurethane) tread. This combination provides superior noise reduction, shock absorption, and non-marking protection for delicate floors.
Precision Engineering: Equipped with high-precision internal bearings that significantly reduce friction, allowing for ultra-smooth 360-degree rotation and effortless mobility.
Standard Compliance: Fully compliant with the EN12531 standard for medical casters, making it ideal for hospital and laboratory applications.
Extreme Temperature Resilience: Engineered to maintain performance in environments ranging from -30°C up to +80°C.

Technical Specifications Comparison

Feature                                                                   Plate Mount (S-125P)                                Threaded Stem (S-125B)                       Plug-in Stem (S-125R)

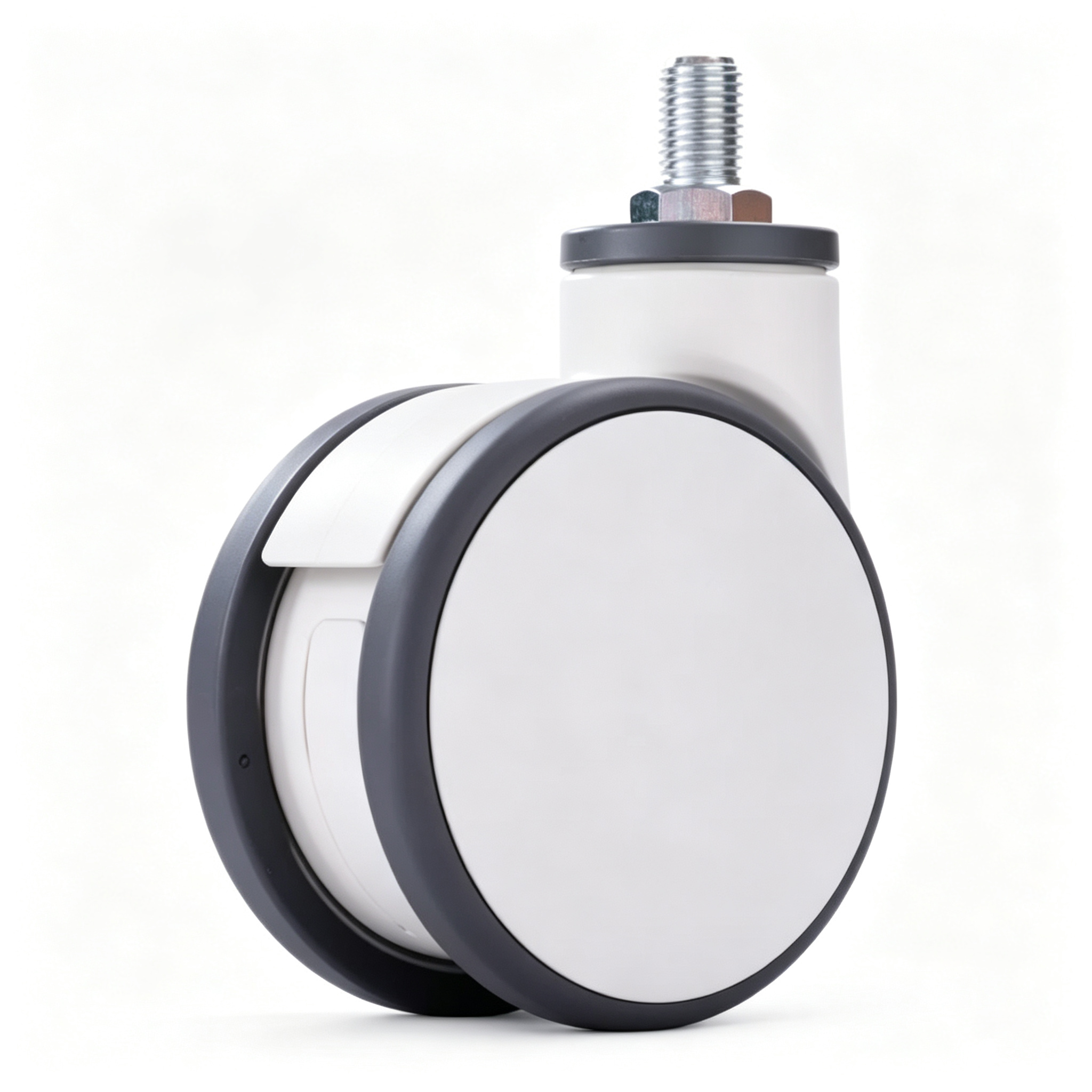

Model Number                                                            S-125P-WG-95X70                               S-125B-WG-M12X25                            S-125R-WG-D28X40
Wheel Diameter                                                                 125mm                                                   125mm                                                    125mm
Overall Width                                                                       72mm                                                   72mm                                                      72mm
Fitting Type                                                                     95x70mm Plate                                  M12 x 25mm Bolt                                    Ø28 x 40mm Stem
Installation Height                                                           174mm                                                  165mm                                                            158mm
Dynamic Load Cap.                                                            100kg                                                          100kg                                                      100kg
Static Load Cap.                                                                 125kg                                                        125kg                                                              125kg
Unit Weight                                                                      1.03kg                                                       0.92kg                                                           0.98kg

Industrial & Medical Applications

Healthcare: Hospital beds, medical carts, ultrasound machines, and mobile diagnostics.
Industrial Automation: AGVs (Automated Guided Vehicles), mobile robotic platforms, and cleanroom equipment.
Professional Workspaces: High-end office equipment, mobile laboratory benches, and high-tech display stands.
Technical Support & Customization
Engineering Ready: We provide 3D CAD files (STP) for easy integration into your equipment designs.
Global Certification: CE and EN12531 certified to meet the strict regulatory requirements of North American and European markets.
Factory Direct: Benefit from manufacturer-direct pricing and rigorous quality control for large-scale B2B orders.

FAQ:

Question: What are the benefits of PA6 and TPU for medical casters?
Answer: PA6 provides a high-strength, chemical-resistant frame, while the TPU tread ensures silent operation and floor protection, meeting strict EN12531 standards for medical environments.
