58mm 12V Motorized Plastic Omni Wheel for Educational Robots
$29.98
58mm Motorized Plastic Omni Wheel designed for educational robots, STEM projects, DIY robot cars, Arduino and Raspberry Pi robotics platforms. Available with 3mm, 4mm, 5mm, or 6mm internal diameter couplers for different motor shaft configurations.
Powered by a 12V, 1A motor, this compact omni wheel provides flexible multi-directional movement for small robotic platforms and educational applications.

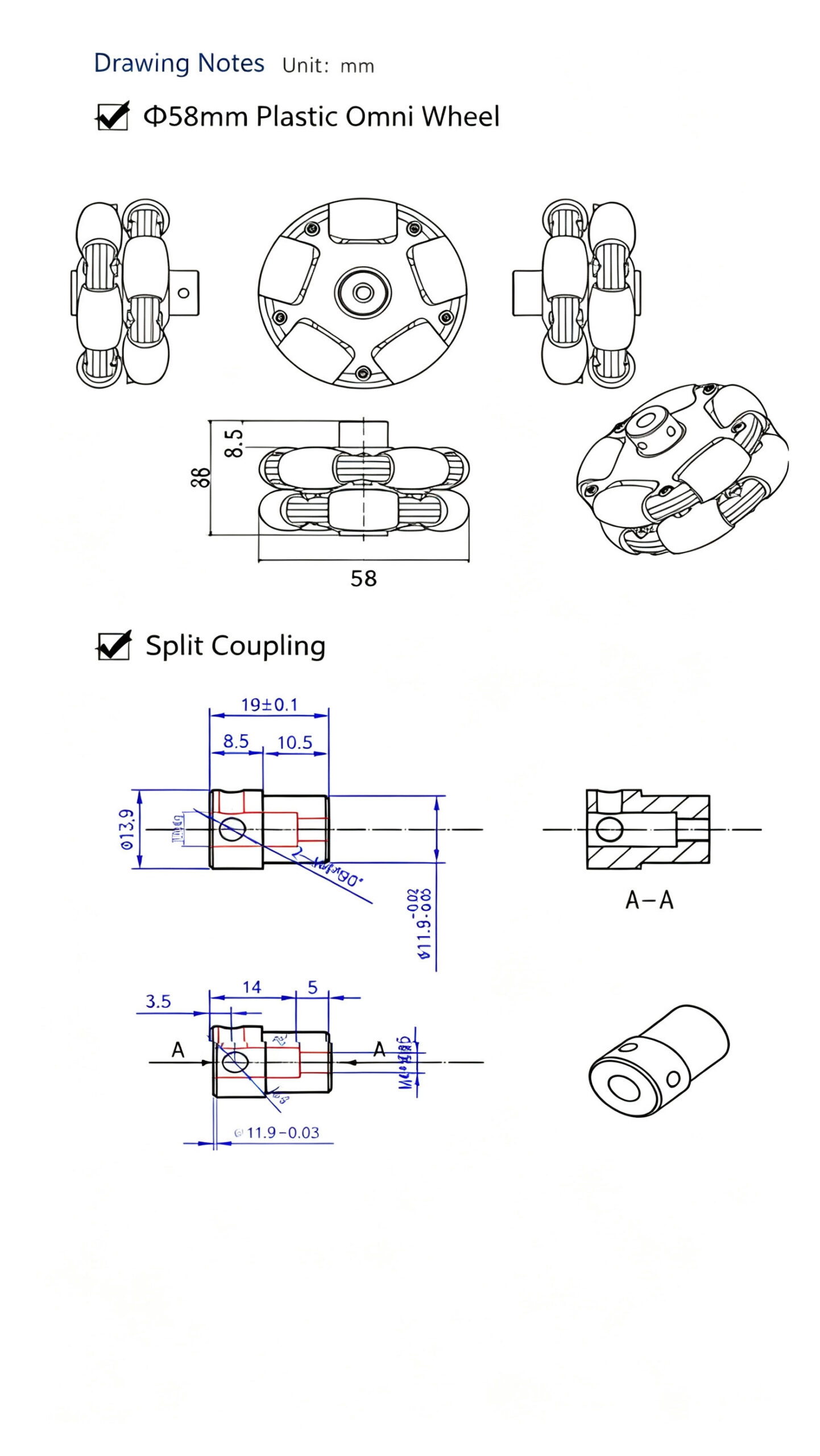

CAD/STP Files Available – Contact us for engineering drawings.
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 3 | 0% | $29.98 | |
| 4 - 19 | 10% | $26.98 | |
| 20 + | 20% | $23.98 |
Description

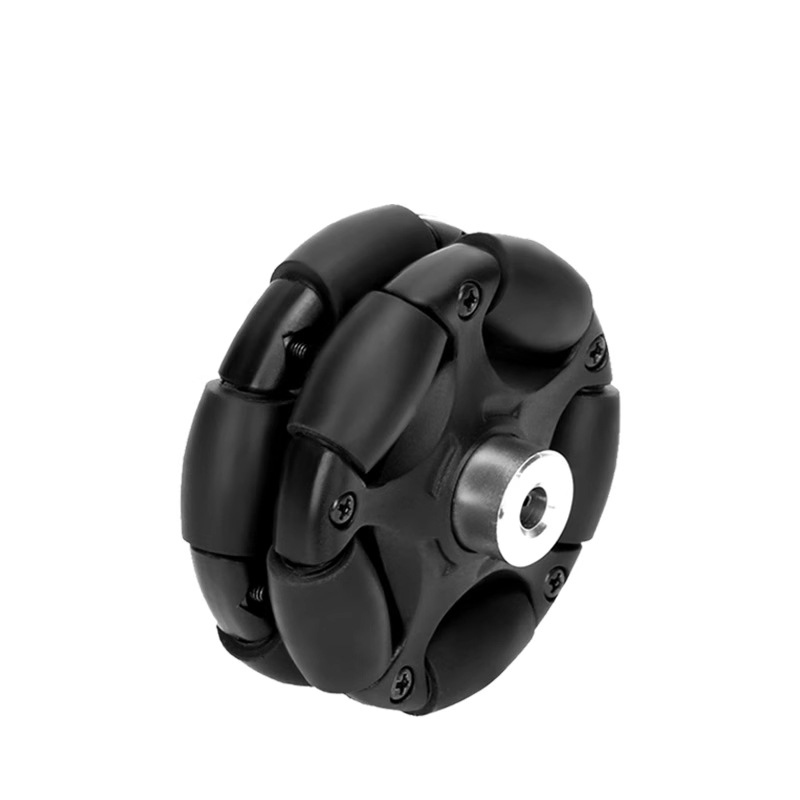

58mm Motorized Plastic Omni Wheel for Educational Robots
The 58mm Motorized Plastic Omni Wheel is a compact omni-directional wheel designed for educational robotics, STEM projects, DIY robot cars, and small mobile robotic platforms.
With a 58mm wheel diameter and integrated motorized design, this robot wheel is suitable for compact robot platforms where flexible movement and space efficiency are important.

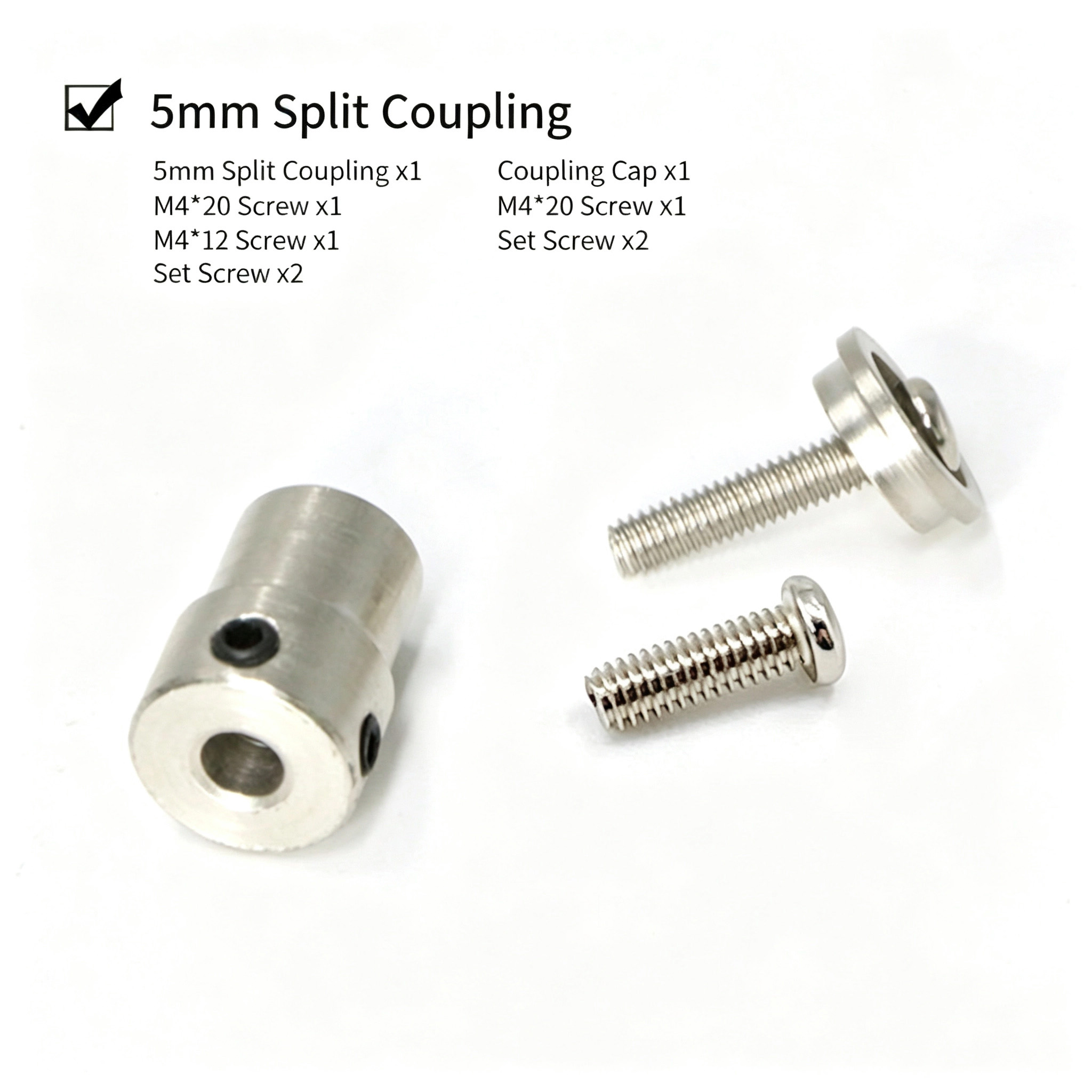

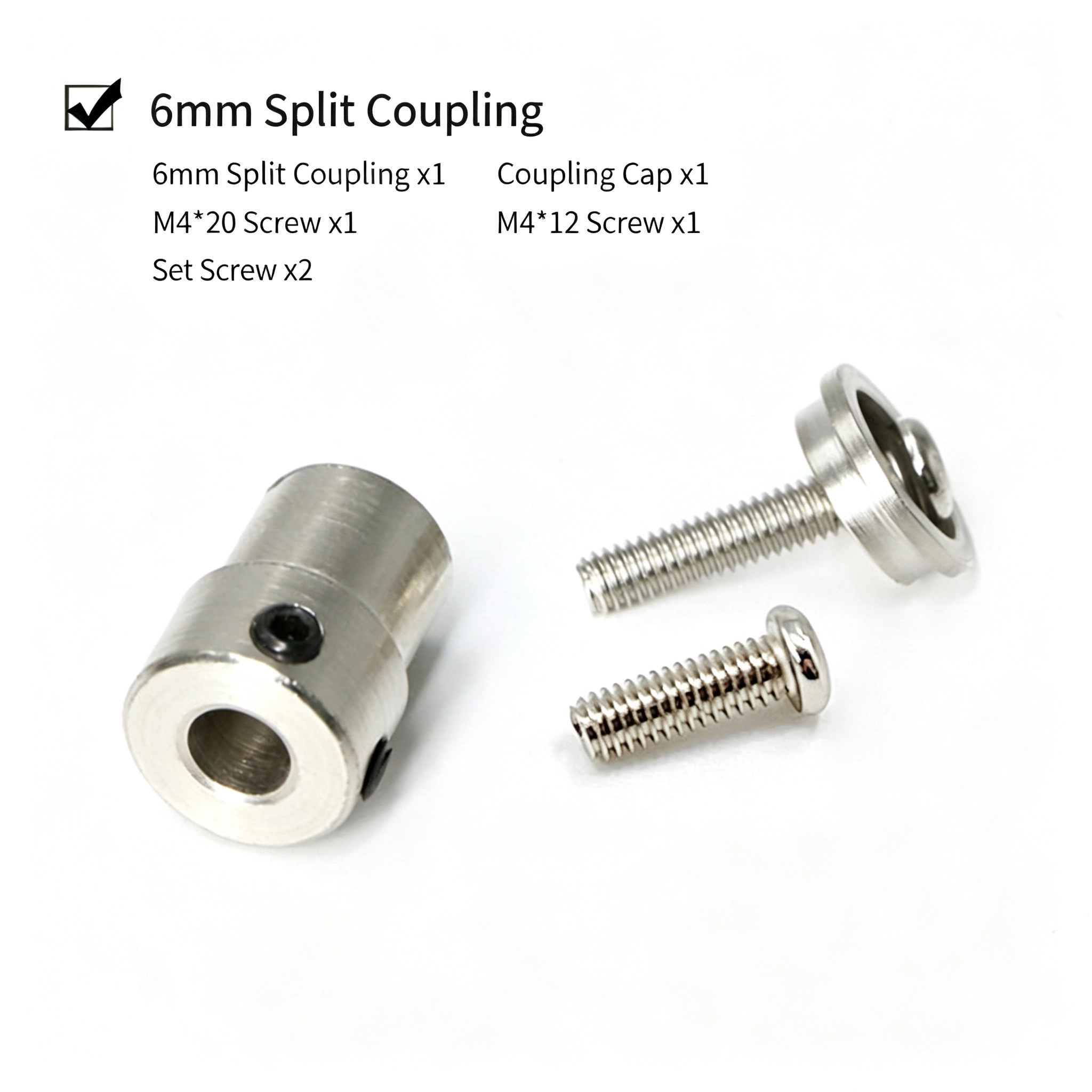

The product is available with different coupling options, including 3mm, 4mm, 5mm, and 6mm internal diameter couplers, allowing you to select the configuration that matches your motor shaft.
Key Features
- 58mm omni wheel diameter for compact robot platforms
- Motorized wheel design for educational and DIY robotics
- 12V operating voltage
- 1A rated current
- Plastic omni wheel construction
- Available with 3mm, 4mm, 5mm, and 6mm internal diameter couplers
- Suitable for STEM and educational robotics projects
- Compact solution for small mobile robots and robot cars

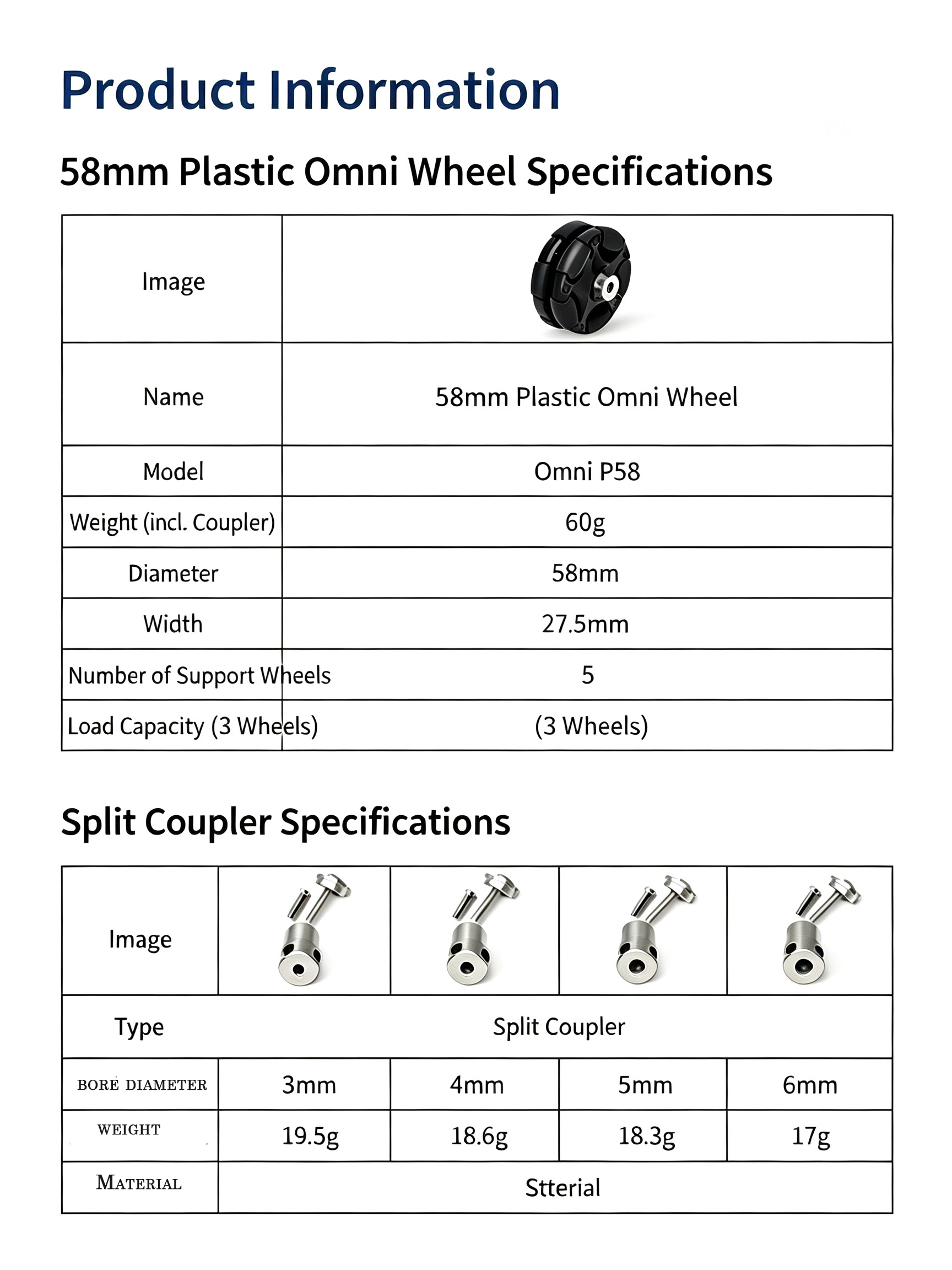

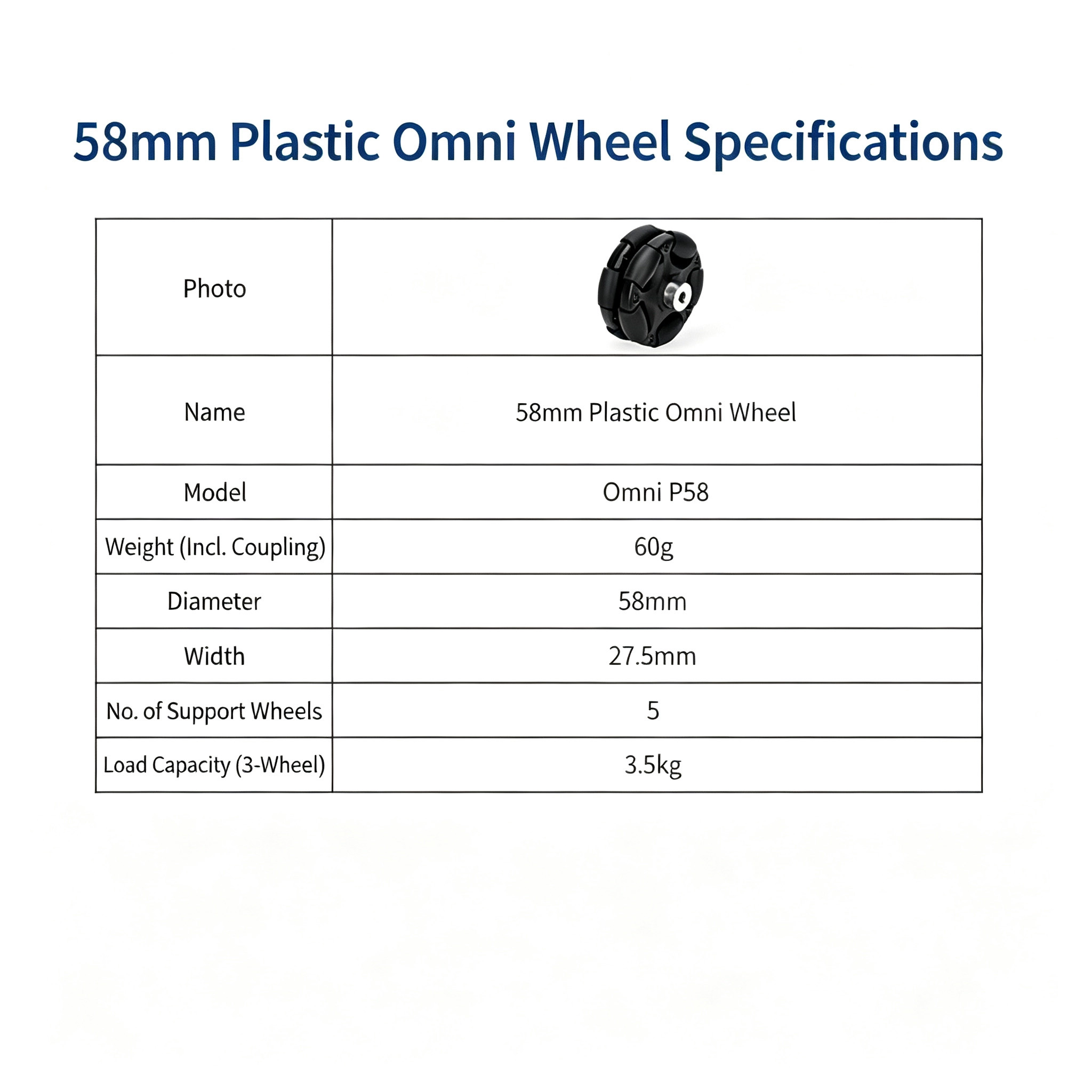

Product Specifications
| Specification | Details |
|---|---|
| Model | Omni P58 |
| Wheel Diameter | 58mm |
| Wheel Material | Plastic |
| Motor Voltage | 12V |
| Motor Current | 1A |
| Wheel Type | Motorized Omni Wheel |
| Coupler Options | 3mm / 4mm / 5mm / 6mm |
| Application | Educational Robotics |
| Model Number | Omni P58 |
Available Coupler Options
Choose the appropriate coupling configuration according to the motor shaft used in your robot project.
| Option | Internal Diameter | Recommended Use |
|---|---|---|
| 3mm Coupler | 3mm | Compatible with suitable 3mm motor shafts |
| 4mm Coupler | 4mm | Compatible with suitable 4mm motor shafts |
| 5mm Coupler | 5mm | Compatible with suitable 5mm motor shafts |
| 6mm Coupler | 6mm | Compatible with suitable 6mm motor shafts |
Designed for Educational Robotics
The 58mm size makes this motorized omni wheel particularly suitable for compact educational robot platforms. It can be used by students, teachers, universities, robotics enthusiasts, and makers to build mobile robotic systems and experimental platforms.
The omni-directional wheel design allows robots to achieve more flexible movement when multiple wheels are correctly arranged and independently controlled. Depending on the wheel configuration and control system, an omni-wheel robot can move forward, backward, diagonally, and laterally.
Typical Applications
- Educational robot cars
- STEM robotics projects
- Arduino robots
- Raspberry Pi mobile robots
- DIY smart cars
- University robotics projects
- Robotics competition platforms
- Small autonomous robot prototypes
- Maker and engineering projects
12V Motorized Omni Wheel
The integrated motor is specified for 12V and 1A operation. Please make sure that your power supply, motor controller, wiring, and control system are suitable for the selected wheel configuration.
For multi-wheel robot platforms, each motorized wheel can be controlled according to the robot’s mechanical arrangement and motion-control requirements.
How to Choose the Correct Coupler
Before ordering, check the diameter of your motor shaft and select the corresponding coupler option. The available options are 3mm, 4mm, 5mm, and 6mm.
If you are building a new robot platform, we recommend confirming the motor shaft size before selecting the wheel configuration.
Compact Design for Robot Projects
With its compact 58mm diameter, this omni wheel is a practical choice for small robotic platforms where a larger industrial omni wheel would be unnecessary.
It is well suited to educational environments because it can be integrated into robot cars and mobile platforms for hands-on experiments involving mechanical design, motor control, programming, and autonomous navigation.

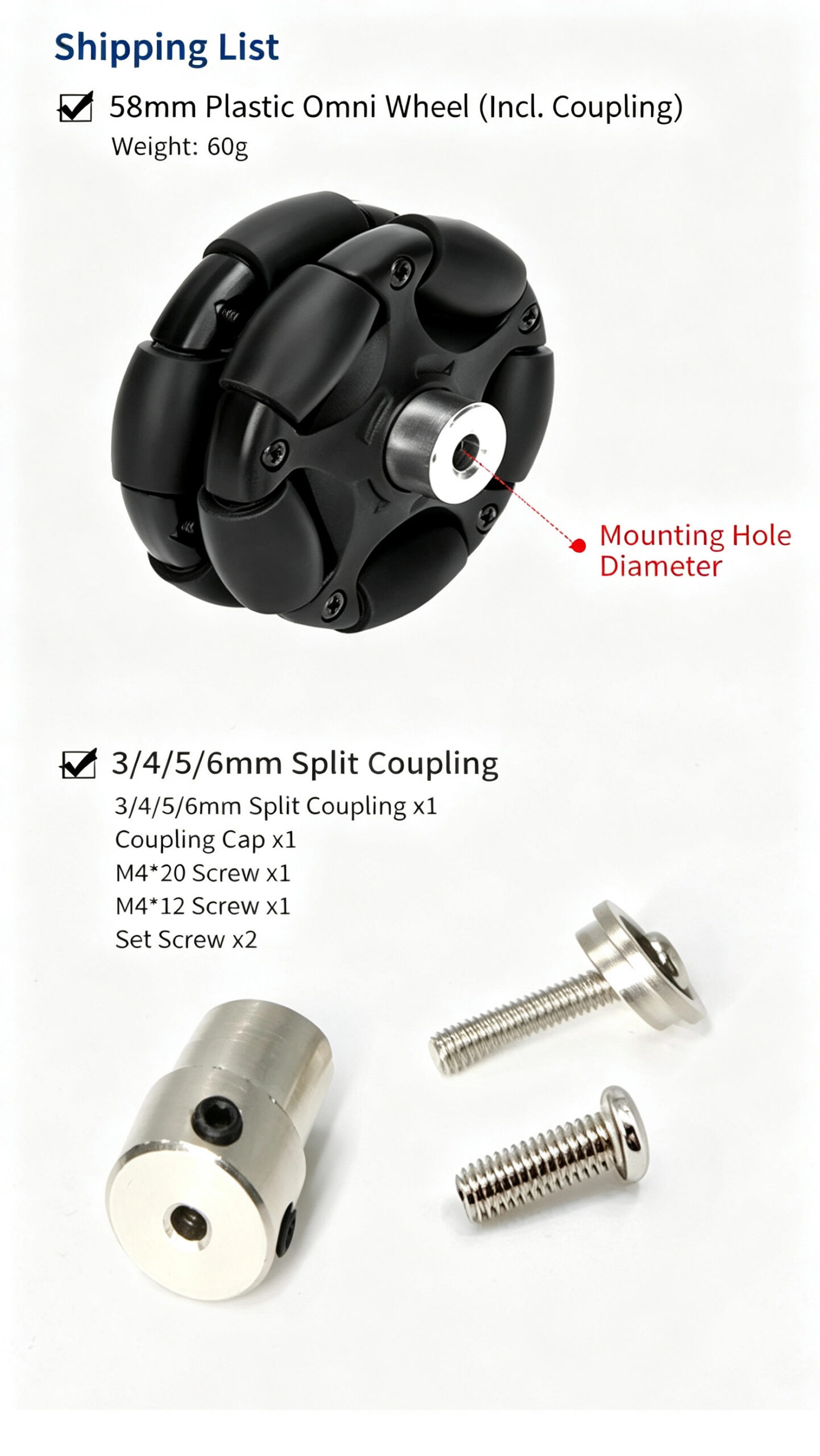

Package Information
| Package Specification | Details |
|---|---|
| Package Size | Approx. 10 × 10 × 10 cm |
| Package Weight | Approx. 80g |
Important Compatibility Information
Please confirm the required coupler size and motor shaft diameter before ordering. The 3mm, 4mm, 5mm, and 6mm options refer to the internal diameter of the corresponding coupling configuration.
Power supply, motor controller, robot chassis, and other components are not included unless specifically stated in the selected product option.
Additional information
| Size | 58mm Omni Wheel with 3mm Coupler 12V 1A, 58mm Omni Wheel with 4mm Coupler 12V 1A, 58mm Omni Wheel with 5mm Coupler 12V 1A, 58mm Omni Wheel with 6mm Coupler 12V 1A |
|---|
