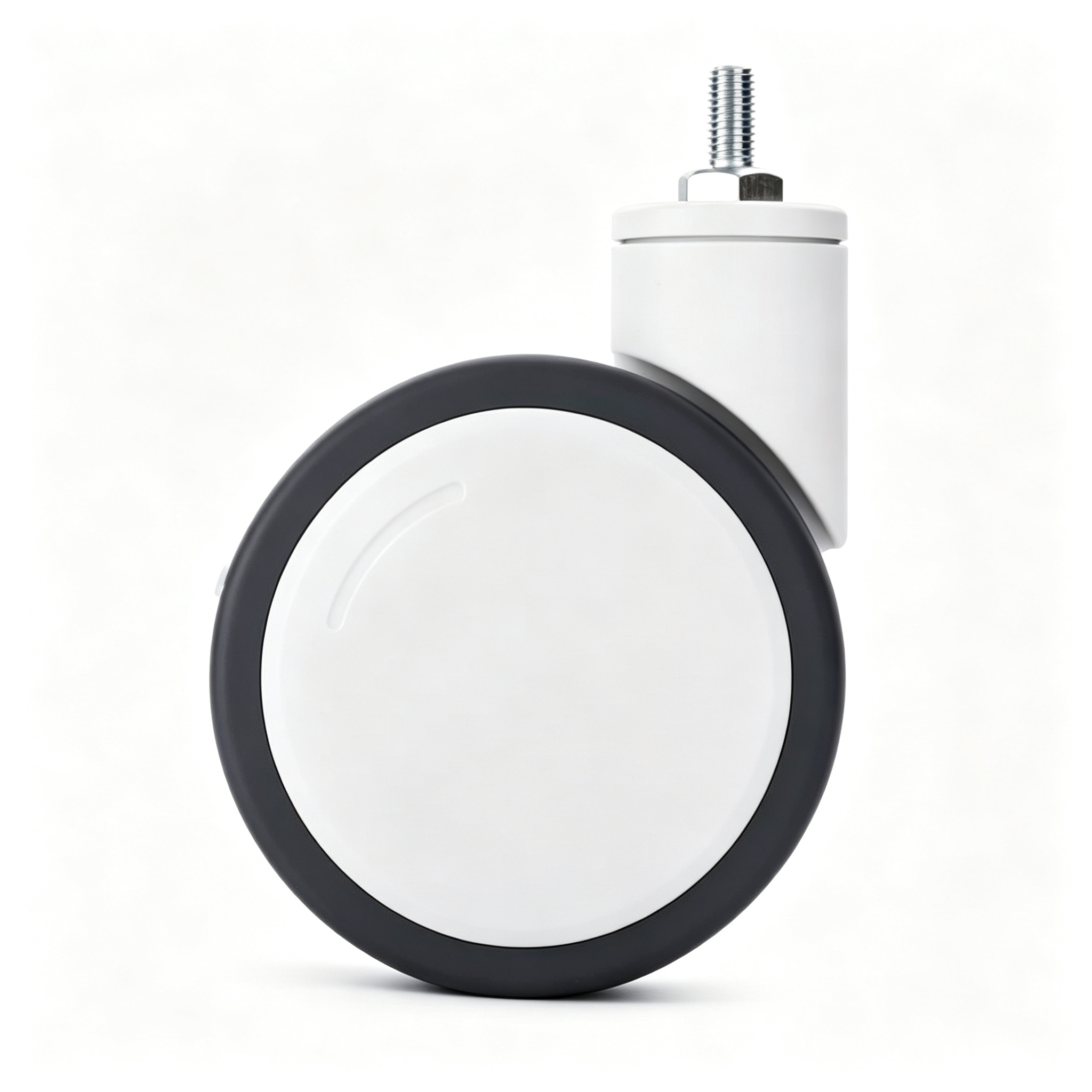

150mm (6-Inch) Heavy-Duty Swivel Caster with M16 M12 Threaded Stem | S-150B-062

説明

Silent Strength for Precision Mobility
The S-150B series is engineered for high-performance industrial and medical applications where smooth, multidirectional movement is critical. Built with a reinforced PA6 Nylon core and high-grade TPU tread, this swivel caster combines a 150KG static load capacity with ultra-silent operation.

Why the S-150B-062-M16X25 Stands Out:
Superior Material Science: The PA6 Nylon frame provides industrial-grade resistance to oils, chemicals, and solvents, ensuring an extended service life in harsh environments.
Non-Marking TPU Tread: Designed for floor protection, the wear-resistant TPU tread offers excellent shock absorption, noise reduction, and mildew resistance.
Precision Engineering: Equipped with internal precision bearings to maximize smoothness and minimize physical effort during operation.
Optimized Maneuverability: Features a 122mm turning radius and a 47mm swivel offset for agile navigation in tight spaces.

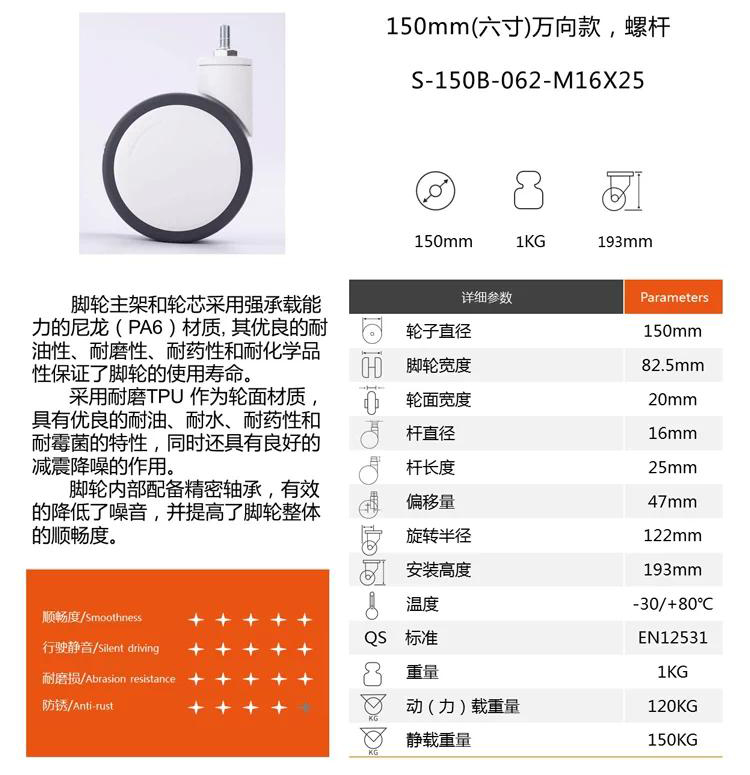

Technical Specification Table

Model S-150B-062-M16X25
Wheel Diameter 150mm (6-inch)
Installation Height 193mm
Stem Specification M16 Diameter x 25mm Length / M12 X25mm
Turning Radius 122mm
Swivel Offset 47mm
Dynamic Load 120KG
Static Load 150KG
Temperature Range -30°C    to +80°C
Standard Compliance EN12531

FAQ
Q: What makes this model different from the “B” version (e.g., SSD-150B)?
A: This specific model (S-150B) is a Swivel Only caster designed for maximum maneuverability without an integrated brake, making it lighter (1KG) and ideal for guided mobile platforms.
Q: Is this caster suitable for medical environments?
A: Yes, it is EN12531 compliant and features chemical-resistant PA6 and non-marking TPU, making it perfect for hospitals and labs.
