5″ (125mm) Central Locking Medical Caster Wheel for Ultrasound Machine & Medical Carts
$59.90
- Medical-Grade Build: High-strength PA6 Nylon core with shock-absorbing TPU/TPE tread.
- Silent & Smooth: Flawless 360-degree rotation with maximum noise reduction and floor protection.
- Certified Safety: Fully compliant with international EN12531 standards.
- Available Sizes: 5-inch (120mm).
Discount per Quantity
| Quantity | Discount | Price |
|---|
| 1 - 3 | 0% | $59.90 | |
| 4 - 19 | 10% | $53.91 | |
| 20 + | 20% | $47.92 |
在庫2000個
説明
Product Description
Swivel caster with total lock, directional lock and free movement. Twin wheels with precision ball bearing and covers. Housing and wheel core made of Nylon-PA6. High load-bearing capacity TPE wheel tread assures of quiet and stable rolling.
Apply to the stem with cam hole.
SUPPORT CUSTOMIZIED SERVICE!

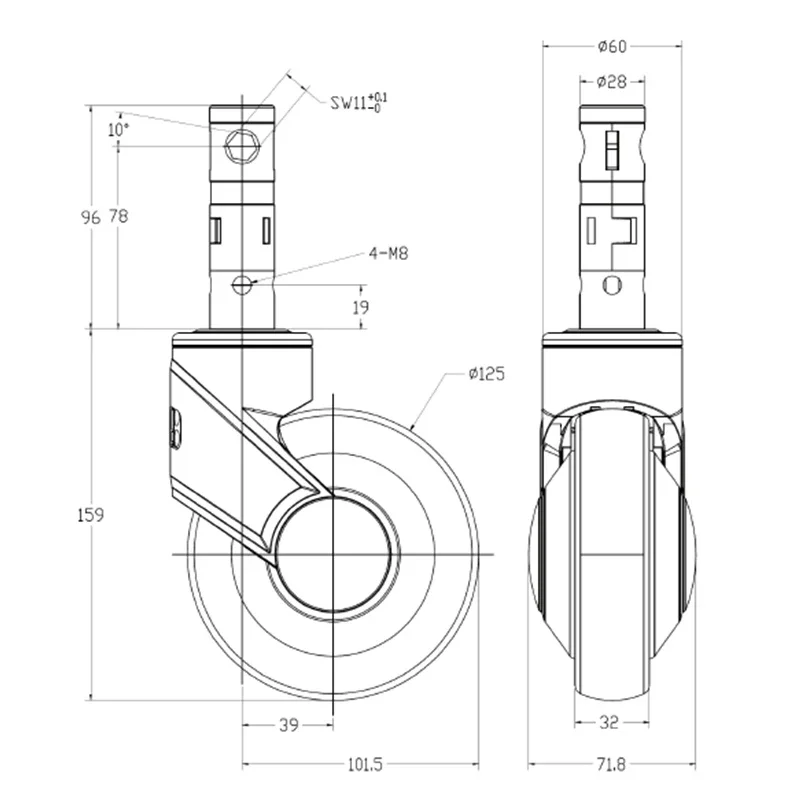

Product Parameters
| Specification | |
| Wheel Diameter | 125mm |
| Caster width | 71.8mm |
| Tread width | 32mm |
| Bolt diameter | 28mm |
| Bolt Length | 96mm |
| Offset | 39mm |
| Swivel Radius | 101.5mm |
| Overall height | 159mm |
| Temperature | -30/+80ºC |
| Standard | EN12531 |
| Weight | 0.97KG |
| Dynamic load capacity | 100KG |
| Static Load capacity | 120KG |
Applications:
追加情報
| 重さ | 1.5 kg |
|---|
Frequently Asked Questions
Are these caster wheels suitable for hospital beds?
Yes, our medical casters are fully engineered for medical environments. They are ideal for hospital beds, medical carts, ultrasound machines, and other clinical diagnostic equipment requiring smooth, hygienic, and reliable mobility.
How much weight can each wheel support?
The load capacity varies by wheel size and model. We offer light-duty to heavy-duty medical casters designed to handle standard clinical equipment as well as heavy bariatric hospital beds. Please check the specific load ratings listed in the Additional information tab for exact technical specifications.
Are the wheels quiet on hospital floors?
Absolutely. The wheels are wrapped in high-grade, non-marking materials (such as synthetic rubber or polyurethane) paired with precision sealed bearings. This design guarantees ultra-quiet operation, floor protection, and smooth rolling over typical hospital flooring like vinyl, linoleum, and tile.
Can I replace existing medical casters with these?
Yes, they are designed as direct replacements for industry-standard medical equipment. To ensure seamless compatibility, please verify the stem type (threaded stem, bolt hole, or top plate dimensions) and diameter before purchasing. Contact our support team if you need help verifying dimensions.
Do the wheels include brakes?
We offer multiple braking configurations depending on your requirements, including total-lock brakes (locking both swiveling and wheel rotation), directional locks for straight-line tracking, and free-swiveling options. Please select the specific brake type required from the product options.
