How to Replace a Power Wheelchair Omni Wheel (Step-by-Step Guide)

Power Wheelchair Omni Wheel Replacement Guide (8″ & 10″)

Replacing a power wheelchair omni wheel is one of the most important maintenance steps to keep mobility smooth, stable, and safe.
This guide explains how to replace 8-inch and 10-inch omni wheels with 12mm or 17mm mounting options.

 Most power wheelchairs use 8” or 10” omni wheels with built-in bearings and 12mm or 17mm bore sizes.
Always match your original wheel specifications before replacement.

What Is a Power Wheelchair Omni Wheel?

A power wheelchair omni wheel is a multi-directional wheel that allows smooth movement in any direction.
It improves turning performance in tight indoor spaces and enhances mobility control for smart wheelchairs and mobility devices.

Step 1: Identify Your Wheel Size

  • 8 inch: Indoor use, tighter turning radius
  • 10 inch: Better stability and outdoor performance
  • Check mounting hole: 12mm or 17mm
  • Confirm bearing type: built-in sealed bearings

Step 2: Required Tools

  • Allen/hex wrench set
  • Spanner or adjustable wrench
  • Screwdriver (if cover exists)
  • Wheelchair lifting support

Step 3: Safety Preparation

  • Turn off power wheelchair
  • Disconnect battery if possible
  • Lift wheelchair safely and stabilize it

Step 4: Remove Old Wheel

  • Locate central axle bolt
  • Loosen mounting hardware
  • Remove wheel carefully
  • Keep spacers and washers organized

Step 5: Inspect Mounting Area

  • Check axle condition
  • Inspect bracket wear or cracks
  • Clean dust and debris

Step 6: Install New Omni Wheel

  • Align wheel with axle
  • Install spacers in original order
  • Tighten bolt evenly
  • Ensure smooth rotation

Step 7: Test After Installation

  • Rotate wheel manually
  • Check 360° smooth movement
  • Test turning and forward motion

Common Problems During Replacement

  • Wrong bore size (12mm vs 17mm)
  • Missing spacers or washers
  • Over-tightening axle bolt
  • Misalignment during installation

When Should You Replace Omni Wheels?

  • Grinding or clicking noise
  • Reduced steering performance
  • Wheel wobble or instability
  • Visible roller wear or cracks

Why 10 Inch Wheels Are More Popular

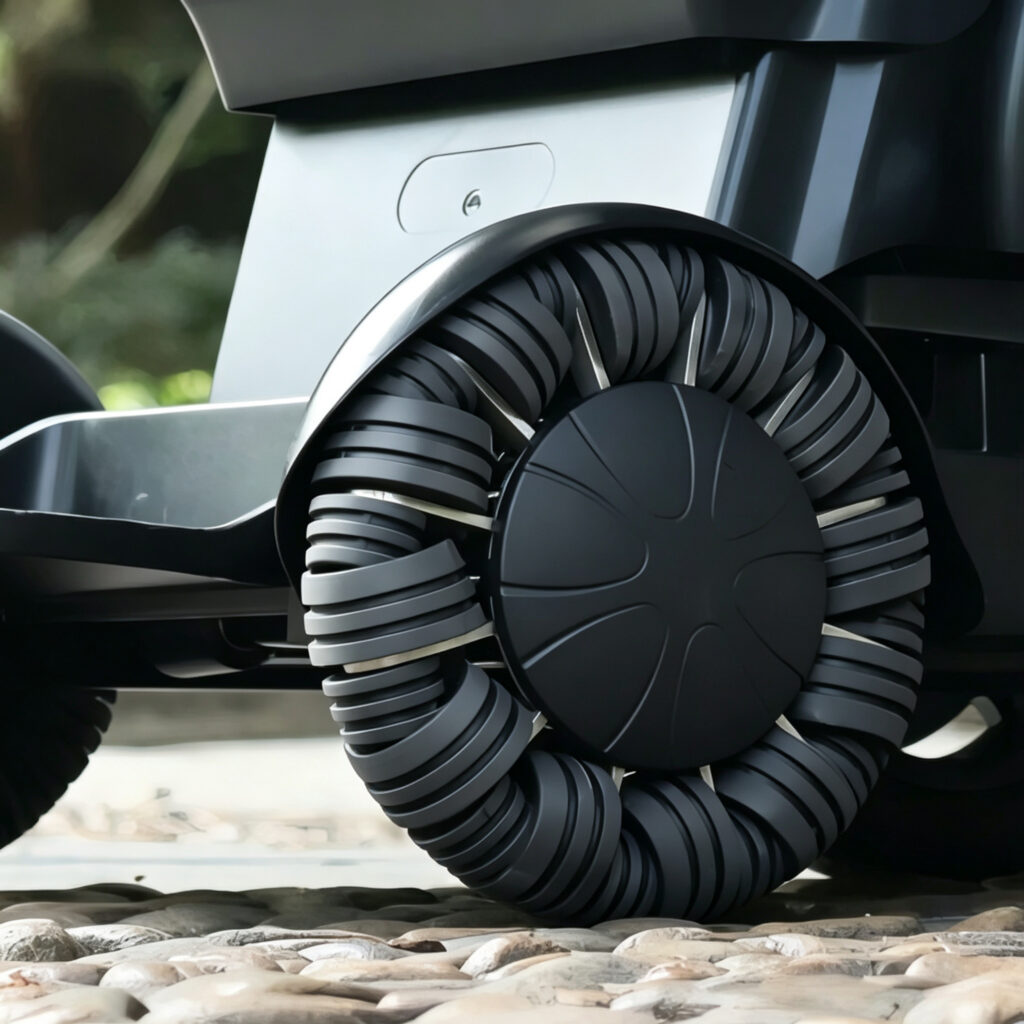

8“ 10“ Intelligent Power Wheelchair Front Omni Wheel Replacement

10-inch omni wheels provide better stability, higher load capacity, and smoother movement on uneven surfaces.
They are commonly used in modern smart power wheelchairs and mobility scooters.

FAQ

Can I replace a power wheelchair omni wheel myself?

Yes. Most replacements only require basic tools and proper wheel matching (size and bore).</p>

What is the difference between 8 inch and 10 inch wheels?

8 inch wheels are better for indoor use, while 10 inch wheels provide better stability and outdoor performance。

How do I know if I need a 12mm or 17mm bore?

Measure your axle diameter or check the original wheel specification before ordering.</p>

Are omni wheels compatible with all wheelchairs?

No. Compatibility depends on mounting system, axle size, and wheelchair design.</p>

If you are replacing your wheel, make sure to choose the correct size and mounting type:
